I Added R-38 Insulation to My Loft and It Stayed Ice Cold All Winter

What the Camera Showed

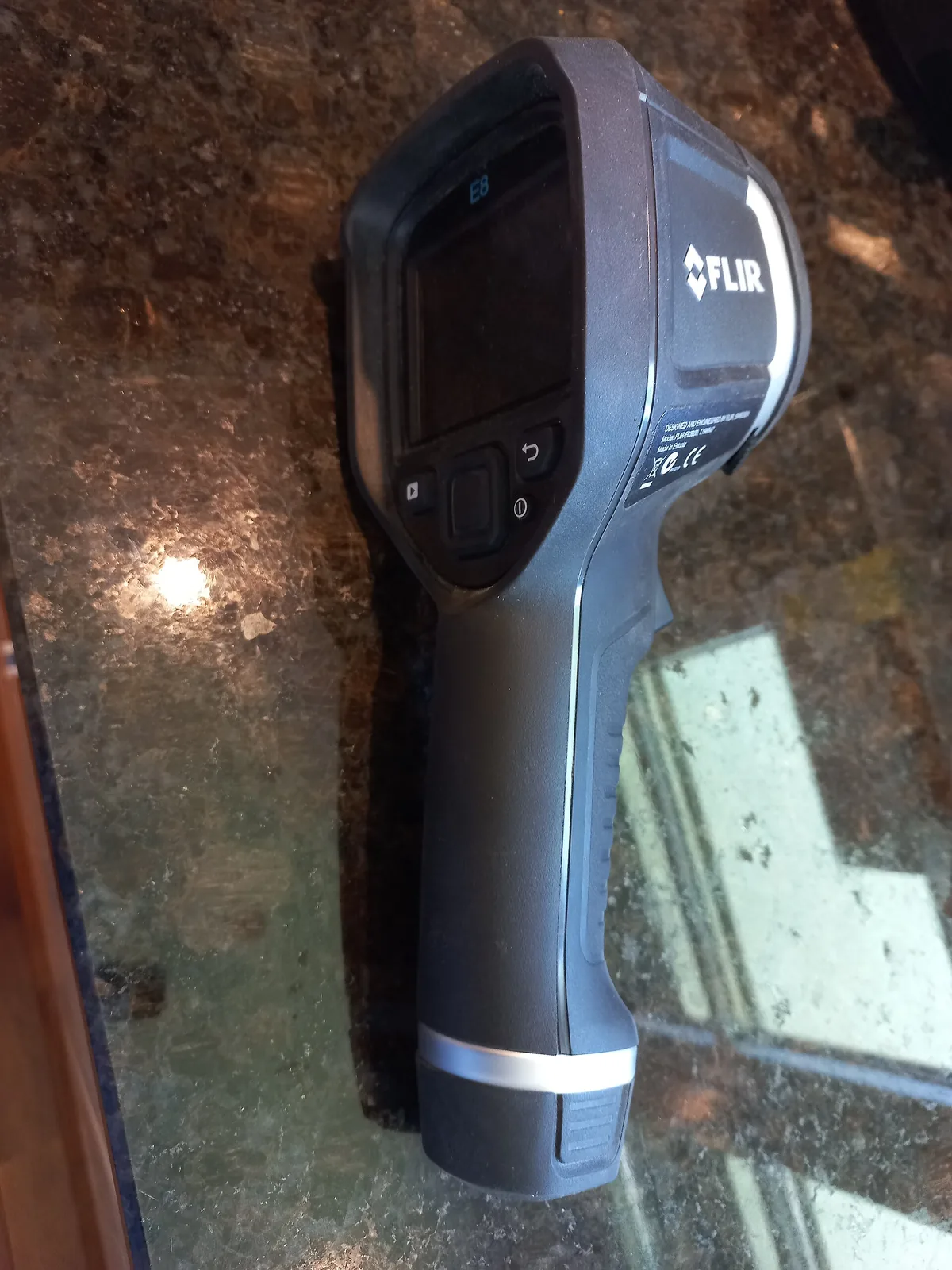

I turned off the baseboard heater, killed the lights, and let the bonus room sit for an hour so the surfaces could equalize. Then I powered up the camera and started scanning, moving slowly from corner to corner.

The ceiling looked fine—a smooth wash of orange and yellow across the entire surface, exactly what you want to see when heat is staying put on the interior side. The camera registered around 66°F up there, which meant my ceiling insulation was doing its job. The windows showed the expected cool halo around the frames where the wood met the glass, dropping to maybe 48°F at the sill. Nothing alarming, just normal thermal performance for double-pane units in January.

Then I aimed the camera at the walls.

Every single stud lit up in bright blue and purple. Not just a little cooler than the insulated bays—ice cold, reading between 35°F and 40°F on the camera’s scale. Thin vertical columns of freezing wood ran floor to ceiling, spaced exactly sixteen inches on center, perfectly outlining the hidden framing behind where my drywall would eventually go.

It looked like an X-ray of a skeleton underneath skin.

The bays between the studs, where all that new blown insulation lived, glowed warm orange. They were holding at 63°F, doing exactly what R-38 fiberglass is supposed to do. But the studs themselves were thermal highways, pulling cold straight through from the outside sheathing to the interior face of the framing. I counted fourteen studs on the longest wall alone—fourteen frozen stripes, each one five-and-a-half inches wide, bleeding heat out of the room faster than my baseboard unit could replace it.

I stood there staring at the screen, watching my heating dollars pour through a dozen columns I couldn’t even see with my naked eye. The insulation was doing its job. The wood framing was sabotaging it.

But wood is supposed to insulate, right? It’s a natural material. That’s what I’d always assumed, anyway. So why was it acting like a refrigerator coil, conducting cold straight through to the room?
